Drilling right into a hid cable is at all times a nasty shock – and it’s critically harmful if the wire is dwell. Electrocution may result when a dwell cable is broken and makes contact with the drill, forming a circuit via the person’s physique.
One other hazard is fireplace threat ensuing from harm to wiring. If you happen to drill via a part of a cable with out realising (or with out getting it fastened afterwards), this might trigger the wiring in your electrics to spark and begin a blaze.
On the very least, drilling into wiring is disruptive and dear. You’ll have to name in an electrician to analyze and repair the harm, which frequently includes eradicating a piece of the plasterwork and putting in a brand new cable.
It’s clearly greatest to keep away from drilling into wires, so we requested an electrician and a wire detector producer for his or her recommendation. Learn on for steering on easy methods to find {the electrical} cables in your partitions, easy methods to minimise the danger of drilling into wiring – and what to do in case you hit a cable.
Electrical work is hazardous, and the correct situation of your family electrical energy system is crucial to your security. Fastidiously contemplate your individual capabilities and security necessities earlier than making any selections which contain your electrics, and seek the advice of with a certified electrician if in case you have any doubts or issues.

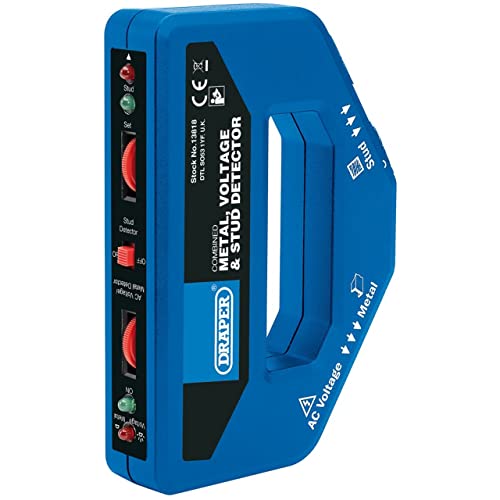

Draper 3 in 1 Steel, Voltage and Stud Detector
For many DIYers, a detector device with voltage detection is the best methodology for locating dwell wires behind a wall. This battery-powered Draper mannequin is efficient and reasonably priced.

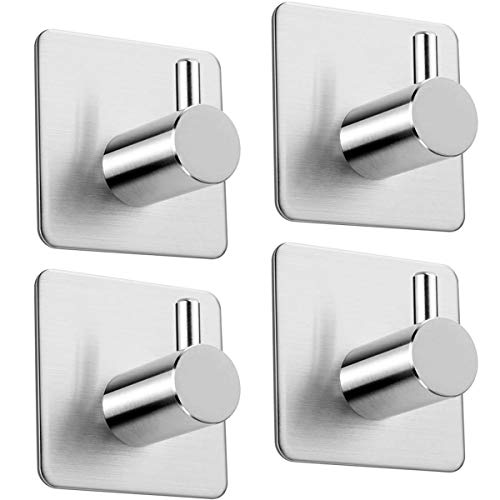

Aikzik 4 Pack of Self Adhesive Hooks, Max 8kg
When you’ve got any purpose to suspect there’s wiring behind a piece of wall, don’t drill into it. You might need no-drill choices for mounting sure objects, corresponding to these adhesive hooks. Word the max. load.

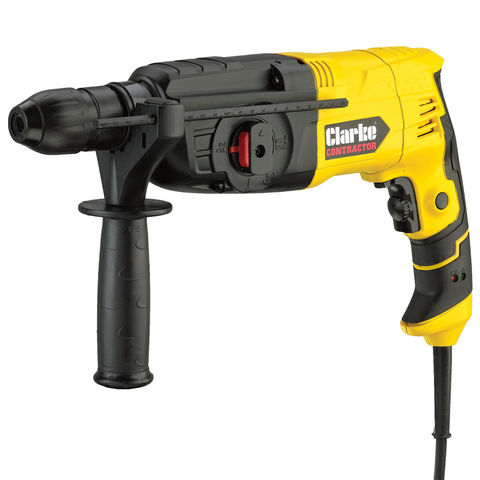

Drilling shallowly the place you’ll be able to reduces the danger of drilling into wires (though it is not an ideal answer). Utilizing a drill with a depth cease, like this mannequin, will assist guarantee you do not drill too deep.
Plan and put together earlier than you drill
Flip off the electrical energy provide to close by circuits
Earlier than you drill, keep in mind to show off the facility provide out of your shopper unit to any electrical circuits that will run via affected areas of partitions or ceilings.
A shopper unit is the trendy equal of a fuse field. It distributes electrical energy to all the circuits within the constructing, which normally embody devoted provides for:
energy shops in particular person rooms
lighting for a number of rooms
massive home equipment corresponding to combi boilers
Every circuit must be clearly labelled to say what it powers, e.g. ‘boiler’, ‘upstairs sockets’, ‘downstairs lights’. (If the circuits will not be clearly labelled, you’ll have to get that addressed by an electrician.)
Flip the person switches to show off the availability to any related circuits. This precaution is essential, because it mitigates among the worst dangers concerned in drilling into partitions.

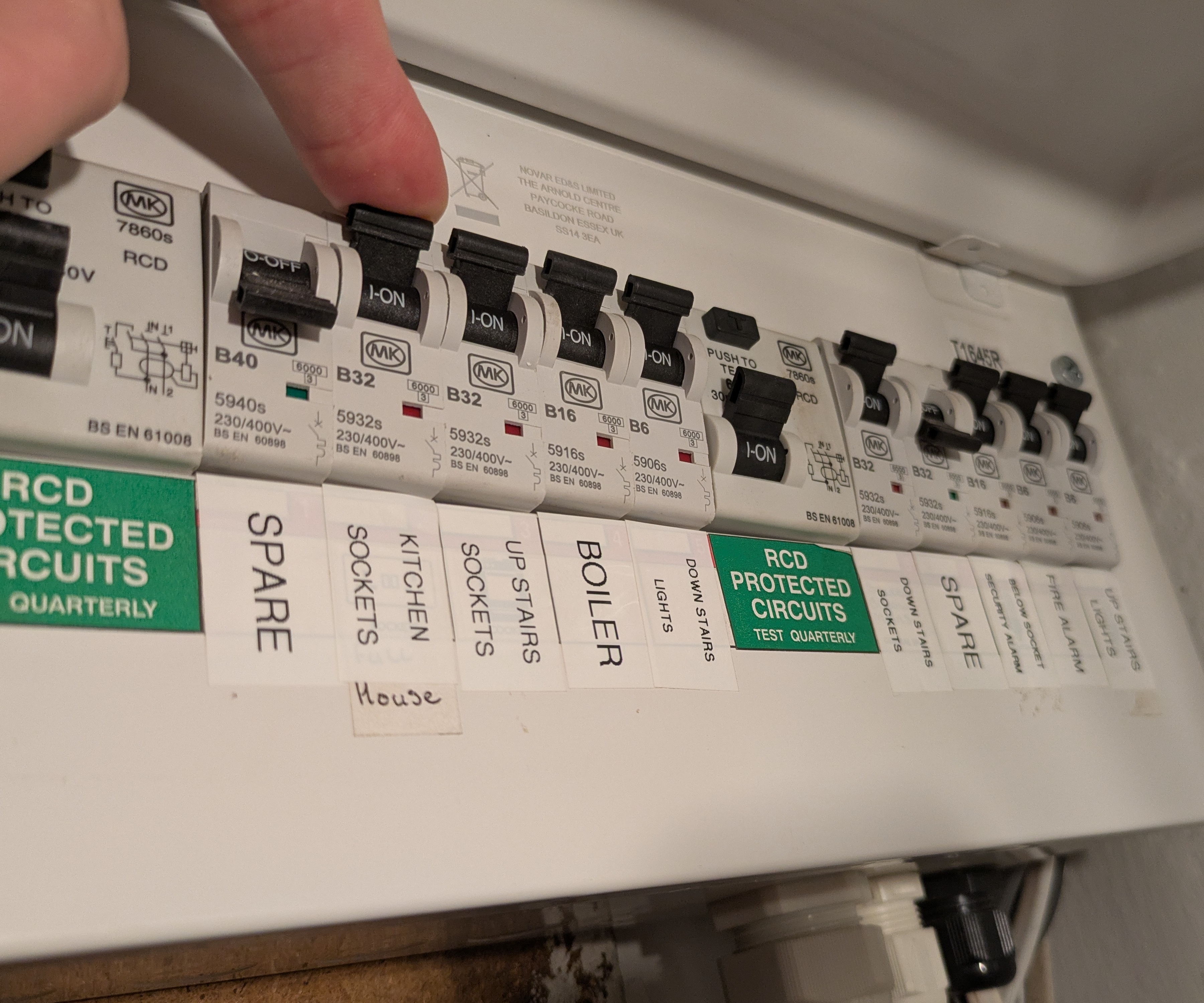

Flipping this swap would shut off the facility provide to the kitchen sockets, making it safer to drill in areas near these shops. Different switches may have to be flipped too.(Picture credit score: Pete Clever)
Dan Collinge
Dan Collinge is Director of ADS Electrical, a Yorkshire-based firm offering electrical providers to properties, companies and industrial premises.
Determine the placement of circuits
In response to electrician Dan Collinge of ADS Electrical, the placement of wiring varies considerably relying on the age and sort of constructing.
“In newer or purpose-built properties, wires are usually run in customary “cable zones” (e.g. horizontally, about 150 mm under ceiling strains or vertically to and beside switches),” he says.
“Older properties or ones which have been altered over time can have unpredictable wiring routes. Renovations, added energy shops and hid extensions usually result in cables in non-standard locations.”
If you happen to’ve had rewiring work achieved or are involved with the earlier proprietor, you might need entry to a wiring diagram for the property.
“An expert rewire consists of complete as-built circuit diagrams, which assist owners, landlords, and repair contractors to securely find circuits,” says Collinge.
“At A.D.S, we at all times present digital or paper circuit diagrams after a rewire, making certain shoppers have correct documentation and may keep away from errors sooner or later.”
Sarah Hartland
Draper Instruments is likely one of the UK’s best-known device manufacturers, primarily based in Hampshire and household run since 1919. As head of promoting, Sarah Hartland has an unlimited data of the agency’s instruments, which vary from energy instruments and hand instruments to voltage detectors.
Tips on how to detect cables utilizing a metallic, voltage and stud detector
There are numerous instruments that may assist with detecting wiring inside a wall, from DIY-grade voltage testers to pro-quality thermal imaging units.
Earlier than you try to detect wiring utilizing your machine, be sure to know the way it works.
“Preparation is essential and each machine can be barely completely different, so learn the directions rigorously and maintain maintain of them to refer again to,” says Draper Instruments’ Sarah Hartland.
“Additionally make sure that your machine just isn’t positioned close to any metallic objects or current-carrying conductors (particularly wires) whenever you swap it on.”
2. Check the detector
“You need to at all times take a look at the machine on a identified voltage supply earlier than trying to detect unfamiliar sources,” says Hartland.
Briefly flip again on the facility provide from the patron unit to circuits close to the place you propose to drill.
Place the detector over an space the place you recognize there are dwell cables, corresponding to straight above a lightweight swap (the place will depend upon the place the wiring is routed).
Use the detector’s voltage detection operate, and look ahead to profitable detection to make sure your machine and methodology are working as they need to.

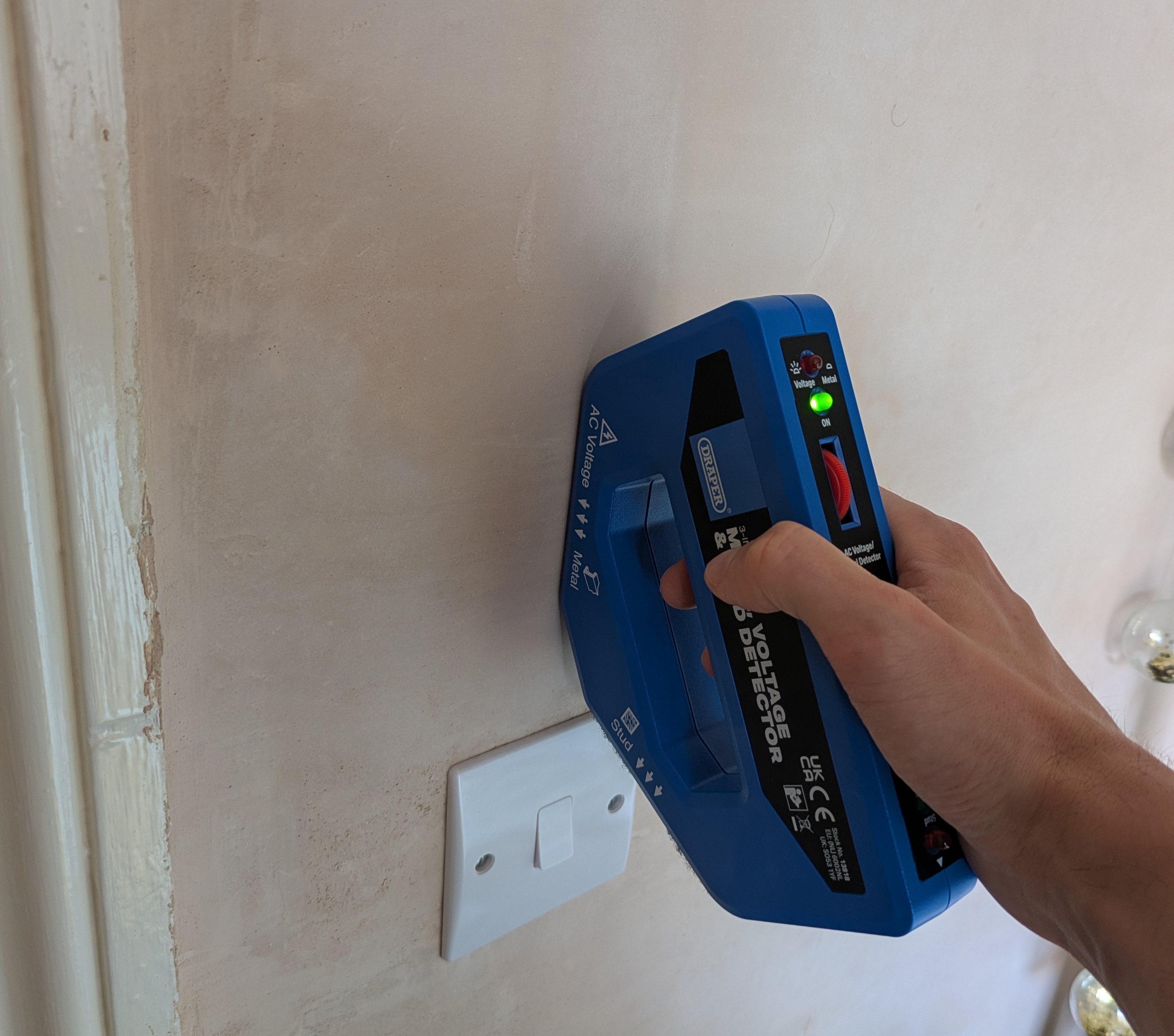

Testing near a lightweight swap will assist you to to make sure a detection machine just like the Draper Steel, Voltage and Stud Detector is working because it ought to.(Picture credit score: Pete Clever)
3. Configure the detector
Detection units range of their out there modes and setup necessities. Comply with the directions to set yours up for voltage detection.
“With the Draper Mixed Steel, Voltage and Stud Detector, with the intention to detect wires you’ll have to rotate the sensitivity dial upwards till the metallic/voltage indicator illuminates and the audible tone sounds,” says Hartland.
“You then reverse the dial gently till the symptoms swap off.”
4. Activate detection and maintain the machine above the place you need to drill
“Maintain the machine in order that the voltage detection face is flush with the wall and transfer it sideways throughout the floor that you simply intend to drill,” says Hartland, explaining the strategy for utilizing Draper’s machine.
“The LED and audio sound will point out what has been detected – metallic or a wire. A relentless LED and tone means a metallic object has been detected. An intermittent LED and tone means a current-carrying conductor has been detected.”
With different wire detection units, the method and suggestions could also be completely different. Some professional-grade detectors give detailed metrics on-screen.
When you’ve got detected wiring (or metallic objects) the place you supposed to drill, then it is best to decide one other spot the place no obstacles will be detected.
The place a wire is shielded by metallic monitoring, this can be picked up by the detector as metallic, relatively than wiring. So, don’t be tempted to drill the place metallic is detected.
If you happen to haven’t detected wiring, you’ll be able to go forward and drill – however solely after following security precautions corresponding to switching off the mains provide to related circuits.
Which different strategies can detect wires behind partitions?
There are numerous instruments that may come in useful for detecting wires inside partitions, together with:
Wire detector (generally taking the type of a multi-functional stud detector device)
Non-contact voltage detector
Torch (for guide investigation)
Pencil (for marking partitions).
Also called ‘voltage tester pens’, non-contact voltage detectors are pen-like units designed to supply a sound or visible sign once they’re held close to an energised conductor (corresponding to a dwell cable).
“Non-contact voltage detectors (NCV) corresponding to our 600V and 1,000V fashions are helpful instruments and may definitely point out the presence of AC voltage with out bodily contact,” says Hartland.
“They’re glorious for shortly checking if a wire is dwell, however they aren’t a direct different to a mixed metallic, voltage, and stud detector just like the Draper mannequin for wall drilling situations.
“Whereas NCV detectors are good for a fast examine, they’ll typically give false positives attributable to induced voltages or interference, and so they will also be affected by the depth of the wire and the kind of wall materials.” she provides.
Some owners make further positive that there aren’t any wires or obstacles behind a hole part of wall by reducing a gap and searching into the void created utilizing a torch (or even perhaps an inspection digital camera). That is usually greatest left to an expert electrician.
FAQs
Which drilling practices will assist keep away from harm to wiring?
Normally, cables behind partitions are set again by at the least 50mm from the floor, though they is likely to be at a shallower depth in the event that they’re protected with a fabric corresponding to metal tubing or metallic capping.
With this in thoughts, you’ll be able to minimise the danger of drilling into wires by making your holes comparatively shallow (e.g. 40mm) if the duty will permit for this. Use a drill with a depth cease to make sure you drill no deeper. This gained’t at all times be an possibility, as heavy or load-bearing fixtures typically have to be screwed deeper into the wall.
Drilling slowly and cautiously could assist you to to determine cables (or protecting coverings like metal tubing or metallic capping) earlier than the wire itself is broken.
Do not forget that you’ll have to train higher warning when engaged on older properties with doubtlessly disorganised wiring.
What to do when a wire is hit throughout drilling?
Regardless of all the out there precautions and detection strategies, DIYers typically do hit wiring whereas drilling into partitions. The telltale indicators are a change in materials which will be felt via the drill, seen proof of broken wiring within the drilled gap – or within the case of a dwell wire, a nasty scent and probably sparks.
Here’s what to do, in accordance with Collinge of ADS Electrical:
“1. Instantly flip off energy on the RCD or major swap to that circuit—don’t use the broken cable.
“2. Name a certified electrician to evaluate the harm, carry out insulation checks (a part of an EICR), restore or change the cable, and restore certification of security.
“3. If utilizing the property commercially (e.g., a rented-out residence), make sure the electrician points an Electrical Set up Situation Report (EICR) after the restore.”
